Silhouette Heat Pen Set - What is it and how to gild with a plotter?

What is Silhouette Heat Pen Set?

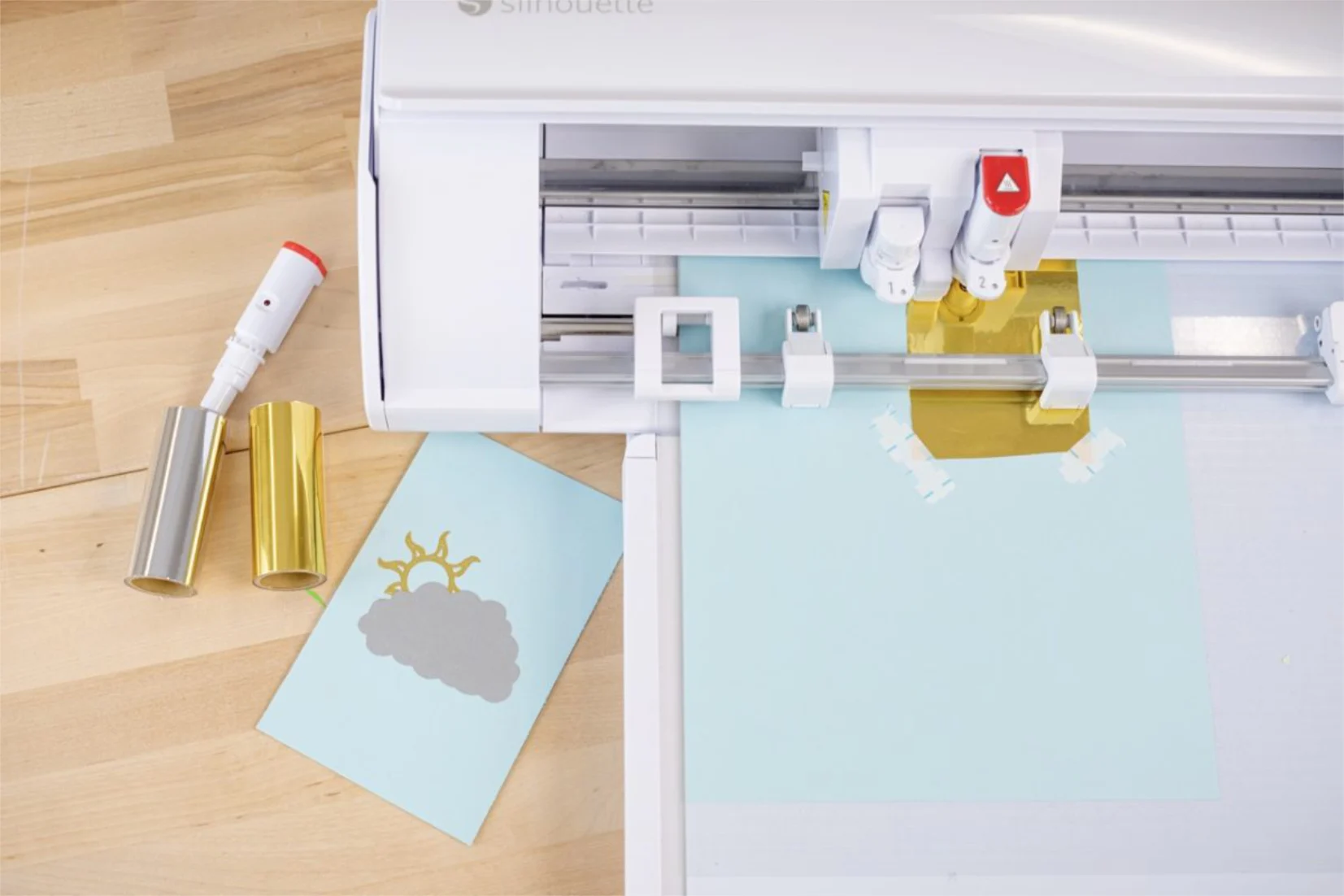

The SilhouetteHEat Pen Set is an accessory dedicated to work with Silhouette cutting plotters, which allows you to create a gilding effect on various materials. This is a tool that makes it easy for even amateurs to achieve a gilding effect, previously reserved mainly for printing houses and professional bookbinding workshops.

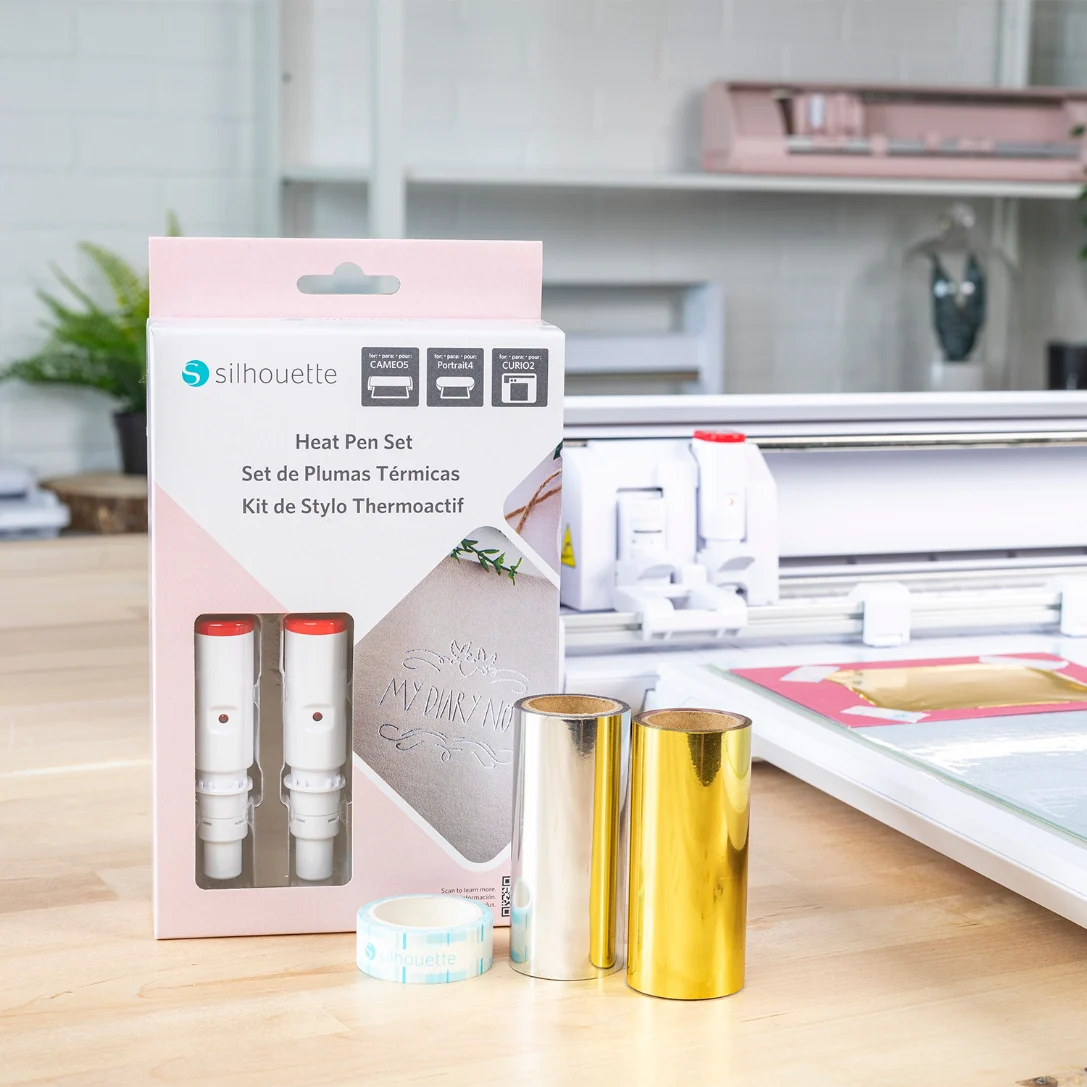

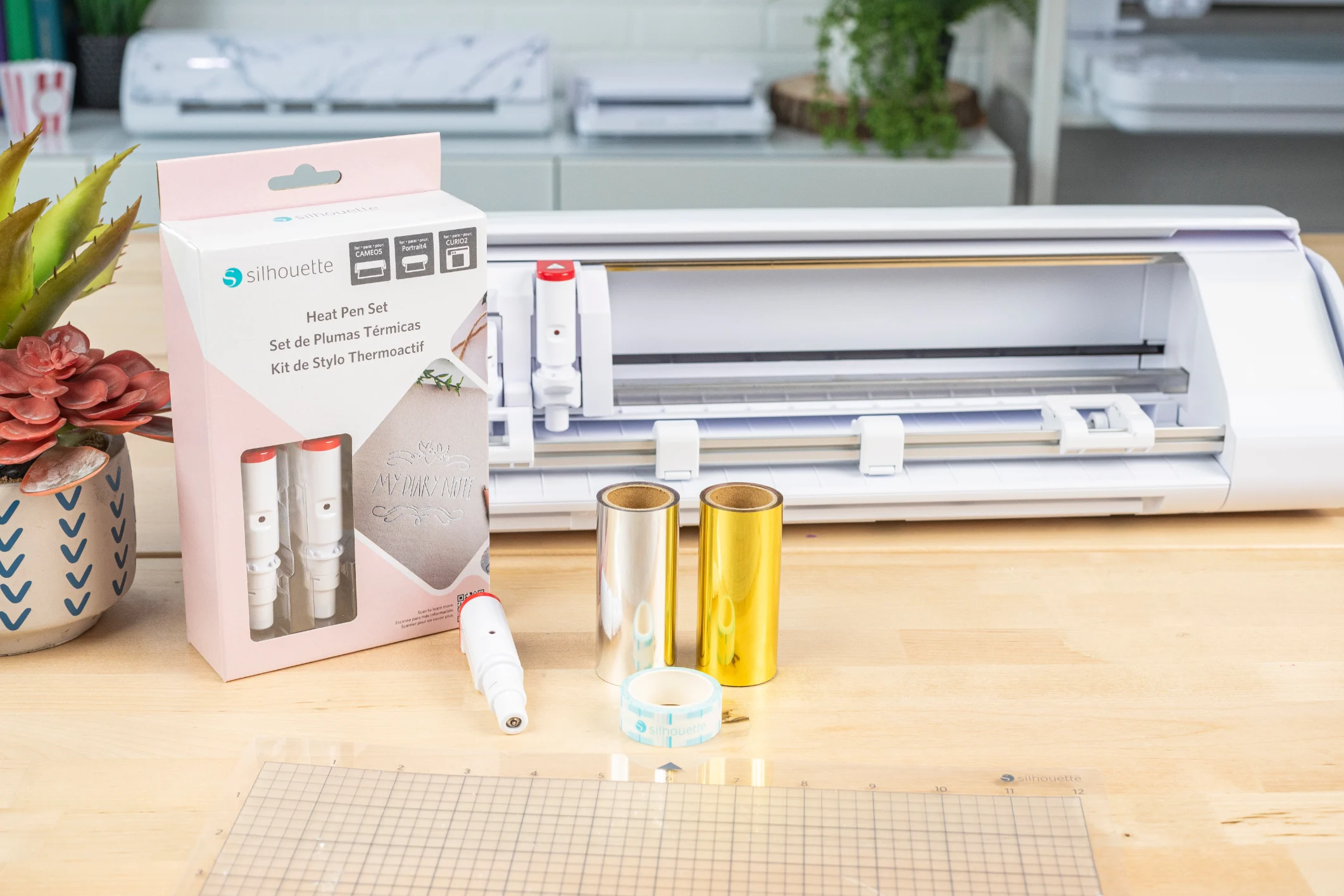

This set consists of several key elements: :

• Gilding tool – dedicated to precise welding of foil for gilding. The set includes two tips, 1mm and 2.5mm thick.

• Gilding foil – a special material that is applied to paper, cardboard or other media and then heated with a tool, giving the effect of shiny gold or silver. The set includes two rolls in silver and gold, each measuring 7.6 cm x 1 m.

• Masking tape – helps to secure a piece of foil to a target surface, such as a sheet of paper. The set includes a roll of tape measuring 1.5cm x 6m.

With the Silhouette Heat Pen Set, the entire gilding process is simple and accessible in home conditions. It is a great alternative for small businesses, hobbyists and people involved in creating handicrafts and unique graphic designs.

How does the gilding process work using a Silhouette plotter?

Gilding using a Silhouette plotter is done in several steps. The process is relatively simple, but requires precision and basic skills to achieve a perfect result.

Description of the individual steps:

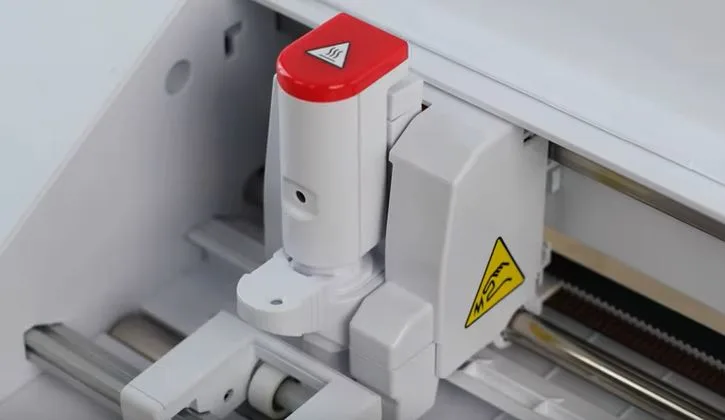

1. Placing the tool in the plotter holder

Depending on the plotter model, the gilding tool should be placed in holder number 2, or in the case of the Portrait 4 plotter, place the power terminal included with the plotter in the appropriate place on holder number 1. Then insert the tool into the holder.

2. Preparing the material

Time to prepare the material. Gilding is most often done on paper, cardboard, or foil, but there is nothing to stop you from trying this technique on other surfaces, such as eco-leather.

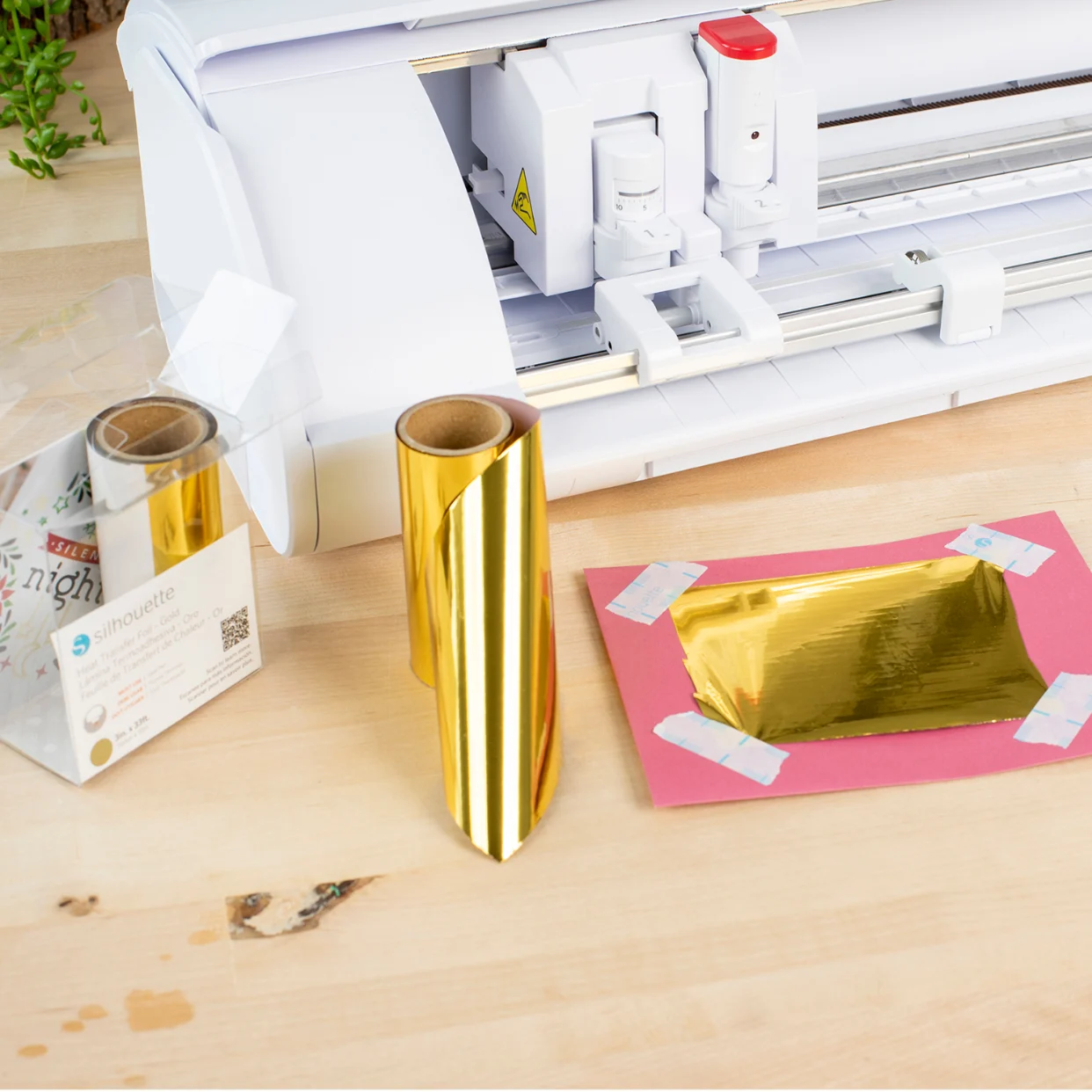

An important step is the proper preparation of the foil, which is applied to the target surface and fixed with masking tape. It can be cut, adjusted to the selected shape and then precisely applied to the previously prepared area of ​​the project.

Place the prepared material on the plotter mat in the place corresponding to the project in the program.

3. Preparing a project in Silhouette Studio

We start by creating a project that is to be gilded. We can design a graphic from scratch or use ready-made patterns available in the Silhouette library. These are usually lettering, logos, decorative elements, frames, etc. When creating lettering, it is worth using single-line fonts or patterns dedicated to sketching, which do not require filling, but if you still want to fill the pattern, you can choose this option after selecting the appropriate special tool and action in the program, i.e. gilding.

4. Appropriate settings in the program

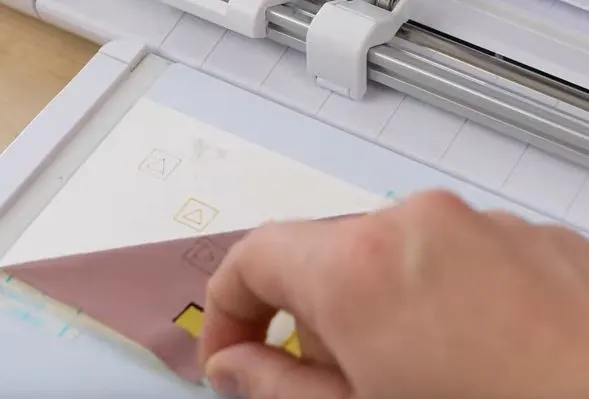

After preparing the pattern and attaching the foil to the target surface, you can proceed to selecting the appropriate settings in the Silhouette Studio program, in the "SEND" tab. The pattern to be gilded should be marked in blue. As a material for gilding, you can select a material from the list in the program that is compatible with this function, regardless of the material you are actually working with. This can be "Leatherette". After selecting the "foil" function and warming up the tool, you can perform a test on a small fragment of the material. If the test result is satisfactory, you can proceed to gild the entire pattern.

5. Finishing the project

Once the process is complete and the gilding foil fragment is removed from the surface, the project is ready for further processing, such as cutting into a specific shape. The end result is a beautiful, shiny surface that attracts attention and gives the project a unique character.

Examples of applications for the Silhouette Heat Pen Set

The Silhouette Heat Pen Set is widely used in a variety of fields. Here are a few examples of how you can use gilding in your projects:

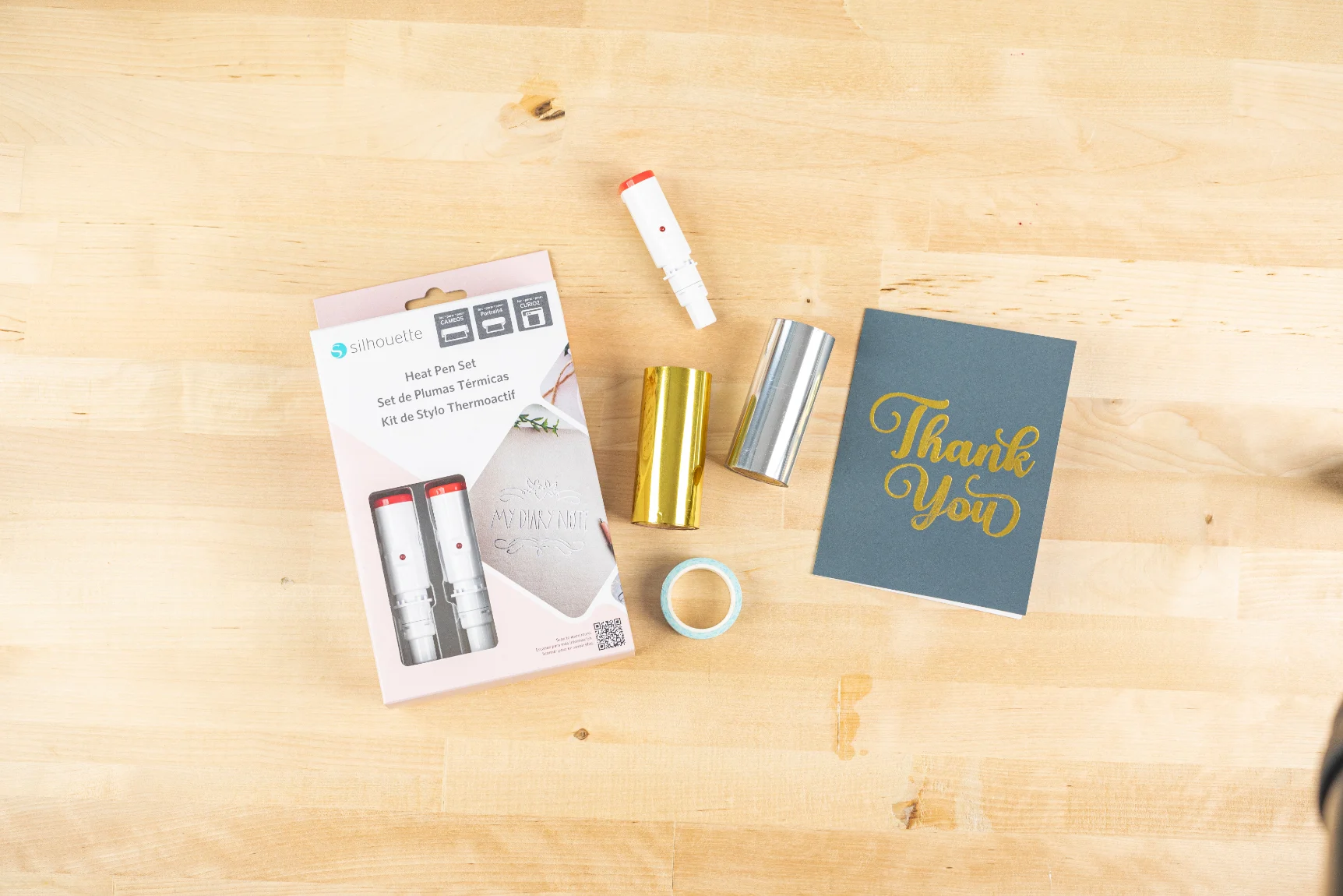

Creating invitations and greeting cards

Gilding is often used to create elegant invitations to weddings, anniversaries or other important events. The gilding effect adds prestige and creates a unique atmosphere. Thanks to the Silhouette plotter, we can easily make gilded inscriptions, frames or decorative details.

Gift Wrapping

Gilding is great for personalizing gift packaging. Using this technique on boxes, labels or gift bags makes them even more unique and elegant.

Creating personalized products

Gilding accessories such as notebooks or calendars is another popular way to give them a luxurious look. Personalizing products with a plotter and a gilding kit allows you to create unique elements that stand out from the rest. (Gilding on items up to 2cm thick is possible with the Curio 2 plotter)

Graphic Design

Gilding is also used in the creation of posters, leaflets, brochures, and other advertising materials. Gilding can be used to achieve an effect that attracts the attention of potential customers and gives marketing materials elegance and expressiveness.

Why is it worth investing in a Silhouette gilding kit?

If you are interested in handicrafts, computer graphics, or simply want to create something unique, the Silhouette gilding kit is an investment that will certainly bring you benefits.

With it:

• You receive a tool for creating effective projects in home conditions.

• You can experiment with different materials and techniques.

• You gain the opportunity to create products that stand out on the market.

• Gilding is becoming accessible and affordable, and the end result is no different from products made by professionals.
